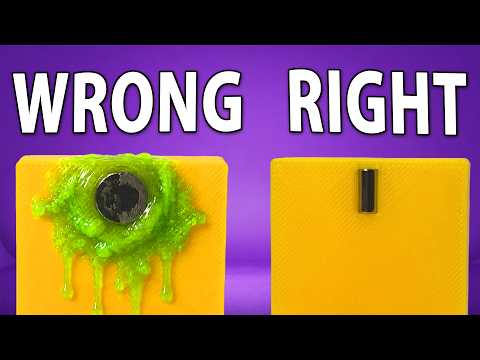

Why Gluing Magnets Fails at Scale
Gluing magnets into 3D printed parts creates production bottlenecks. Each magnet requires manual insertion, adhesive application, and curing time. This adds labor costs and introduces quality variability.
For manufacturers running production volumes, these inefficiencies multiply fast. A recent video from mass-production 3D printing company Slant 3D demonstrates a better approach. You can embed magnets in 3D prints during the build process itself.
This technique eliminates post-processing steps entirely. Parts come off the printer ready to use.
The Mid-Print Pause Problem
Some manufacturers pause prints to insert magnets mid-build. This method works but creates its own issues. Pausing requires operator intervention at precise moments.
In high-volume environments, this isn’t practical. You can’t scale production when every part needs manual attention. The goal is fully automated magnet integration.
Design-Based Solutions
The key is designing parts that capture magnets mechanically. No glue. No pausing. The geometry itself locks magnets in place permanently.
This requires understanding how layers build during printing. You design cavities that start open and close during the build. The magnet drops in at the right moment and gets sealed inside.
Practical Design Techniques
Effective magnet embedding relies on specific design features:
- Tapered entry points that allow magnet insertion but prevent escape
- Snap-fit geometries that click magnets into final position
- Bridge layers that seal cavities after magnet placement
- Interference fits sized for your specific magnet tolerances
These techniques work across multiple printing technologies. However, results vary based on layer resolution and material properties. Understanding why orientation matters in 3D printing helps optimize these designs.
Material Considerations for Magnet Retention
Material choice affects how well embedded magnets stay secured. Flexible materials like TPU grip magnets tightly through compression. Rigid materials require more precise cavity sizing.
Consider these factors when selecting materials:
- Thermal expansion during printing and in service
- Layer adhesion strength around cavity edges
- Material shrinkage affecting final cavity dimensions
- Chemical compatibility with magnet coatings
For applications requiring flexibility, TPU 3D printing offers excellent magnet retention properties.
Tolerance Management
Getting cavity dimensions right is critical. Too loose and magnets rattle. Too tight and insertion fails. Most successful designs use 0.1-0.2mm interference fit.
Test your specific printer and material combination. Every system has unique dimensional accuracy characteristics.
Production Applications
Embedded magnets enable numerous industrial applications. Quick-connect panels, tool holders, and modular fixtures all benefit from this approach.
Assembly time drops dramatically. Workers no longer handle adhesives or wait for curing. Parts arrive ready for immediate use in final products.
Quality improves too. Mechanical retention is more consistent than adhesive bonds. There’s no risk of glue contamination or weak spots from incomplete coverage.
Scaling for Manufacturing
At production volumes, embedded magnet designs shine brightest. JawsTec helps manufacturers implement these techniques in industrial powder bed technologies like Multi Jet Fusion and Selective Laser Sintering.
These processes handle complex internal geometries easily. Parts with embedded cavities print just as fast as solid parts. There’s no penalty for the added design complexity.
Getting Started
Start with prototype quantities to validate your magnet embedding design. Test retention force, insertion ease, and long-term stability. Iterate your cavity geometry based on results.
Once validated, scaling up is straightforward. The design that works for ten parts works for ten thousand. Ready to test embedded magnet designs? Get a quote from JawsTec for your production run.
